BA489 Datasheet - Siemens Semiconductor Group

BA489 - Silicon PIN Diode

Silicon PIN Diode Preliminary Data Sheet q BA 489 Current-controlled RF resistor for FM input stage gain control Type Ordering Code (tape and reel) Q62702-A… Pin Configuration Marking 1 2 3 C n.c.

A BA 489 Package BA 489 TO-92 Maximum Ratings Parameter Reverse voltage Forward current Junction temperature Storage temperature range Thermal Resistance Junction-ambient Symbol Values 50 50 150 55 … + 150 Unit V mA °C °C VR IF Tj Tstg Rth JA ≤ 300 K/W Semiconductor Group 1 10 94

BA489_SiemensSemiconductorGroup.pdf

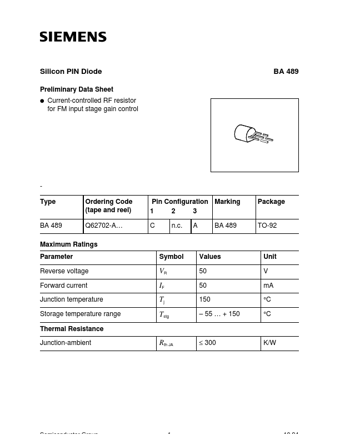

Preview of BA489 PDF
BA489 Datasheet Preview Page 2 BA489 Datasheet Preview Page 3

Datasheet Details

Part number:

BA489

Manufacturer:

Siemens Semiconductor Group

File Size:

36.63 KB

Description:

Silicon pin diode.
