BAT160A Datasheet - NXP

BAT160A - Silicon Schottky Diode

Planar Schottky barrier double diodes encapsulated in a SOT223 plastic SMD package.

1 2 3 MSB002 - 1 BAT160 series PINNING BAT160 PIN A 1 2 3 4 k1 n.c.

k2 a1, a2 C a1 n.c.

a2 k1, k2 S a1 n.c.

k2 k1, a2 Fig.2 BAT160A diode configuration (symbol).

page 4 1 3 2 n.c.

MGL171 age 4 page 4 1 3 2 n

BAT160A Features

* Low switching losses

* Capability of absorbing very high surge current

* Fast recovery time

* Guard ring protected

* Plastic SMD package. APPLICATIONS

* Low power switched-mode power supplies

* Rectification

* Polarity protection. DES

BAT160A_PhilipsSemiconductors.pdf

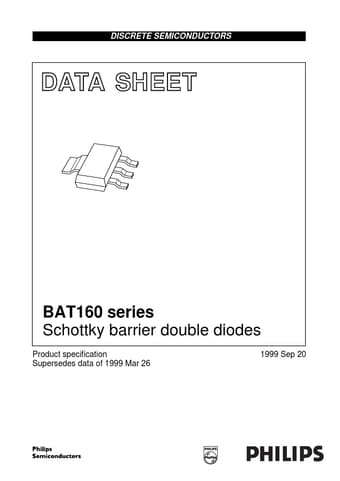

Preview of BAT160A PDF
