BAT721S Schottky barrier double diodes

BAT721S Description

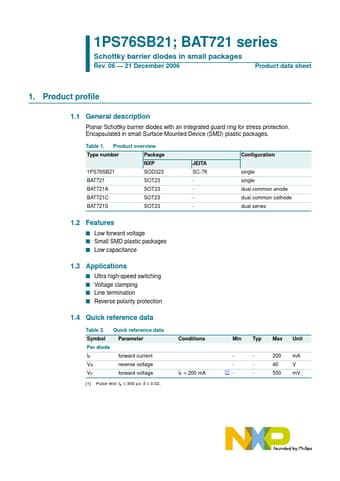

1PS76SB21; BAT721 series Schottky barrier diodes in small packages Rev.06 * 21 December 2006 Product data sheet 1.Product profile 1.1 Gen.
Planar Schottky barrier diodes with an integrated guard ring for stress protection.

BAT721S Applications

* I Ultra high-speed switching I Voltage clamping I Line termination I Reverse polarity protection 1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Per diode IF forward current VR reverse voltage VF forward voltage [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. Conditions IF = 200 mA
