BGY241 Datasheet - NXP

UHF amplifier

BGY241 General Description

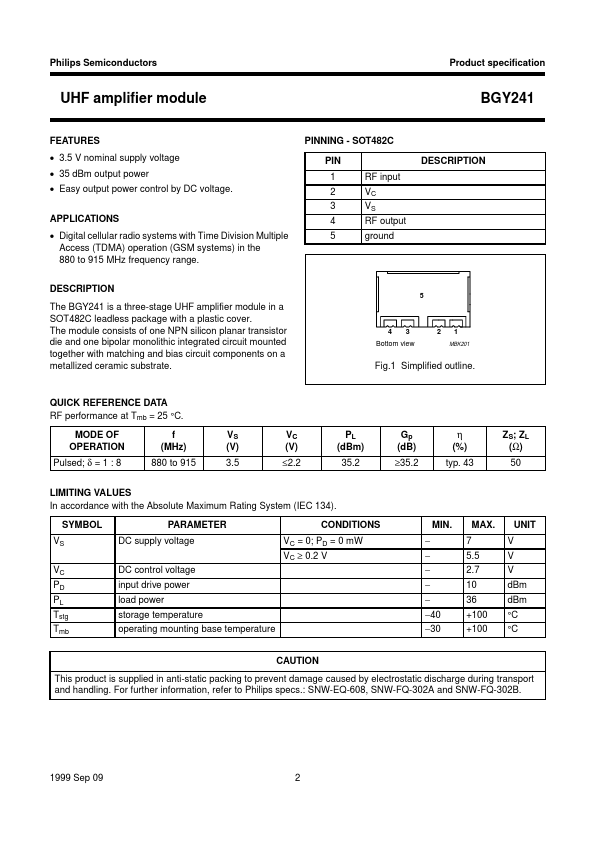

The BGY241 is a three-stage UHF amplifier module in a SOT482C leadless package with a plastic cover. The module consists of one NPN silicon planar transistor die and one bipolar monolithic integrated circuit mounted together with matching and bias circuit components on a metallized ceramic substrate.

BGY241 Datasheet (89.65 KB)

BGY241 Datasheet Preview — Preview of BGY241 PDF

Datasheet Details

Part number:

BGY241

Manufacturer:

NXP ↗

File Size:

89.65 KB

Description:

Uhf amplifier.

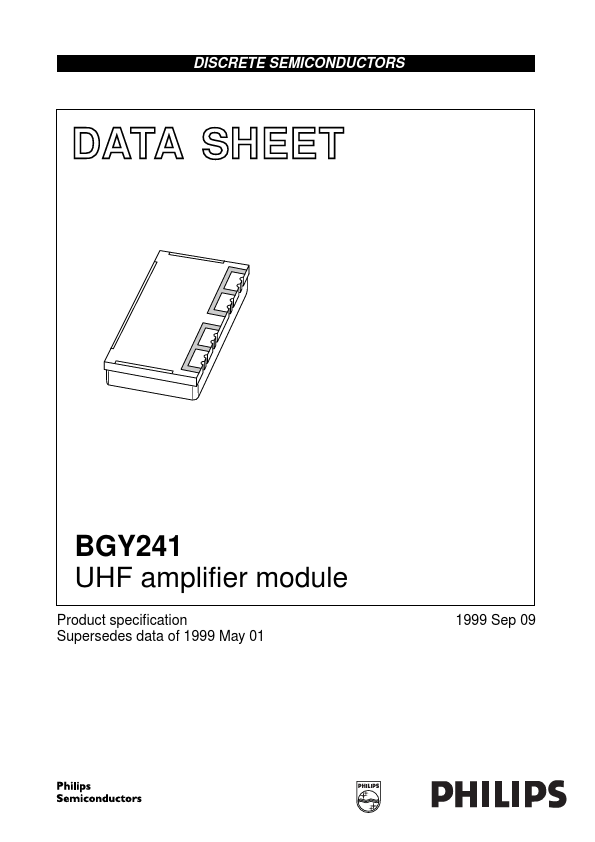

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D373 BGY241 UHF amplifier module Product speciﬁcation Supersedes data of 1999 May 01 1999 S.
