BGY282 Datasheet - NXP

dual band UHF amplifier

BGY282 Features

* Dual band GSM amplifier

* 3.5 V nominal supply voltage

* 33 dBm output power for GSM1800

* 35 dBm output power for GSM900

* Easy output power control by DC voltage

* Internal input and output matching

* Easy band selection by DC voltage

BGY282 General Description

RF input 1 (GSM900) 1 2 3 4 5 6 DESCRIPTION The BGY282 is a power amplifier module in a SOT632A surface mounted ceramic package with a plastic cap. The module consists of two separated line-ups, one for GSM900 and one for GSM1800 with internal power control, input and output matching. 11 Bot.

BGY282 Datasheet (386.55 KB)

Preview of BGY282 PDF

Datasheet Details

Part number:

BGY282

Manufacturer:

NXP ↗

File Size:

386.55 KB

Description:

Dual band uhf amplifier.

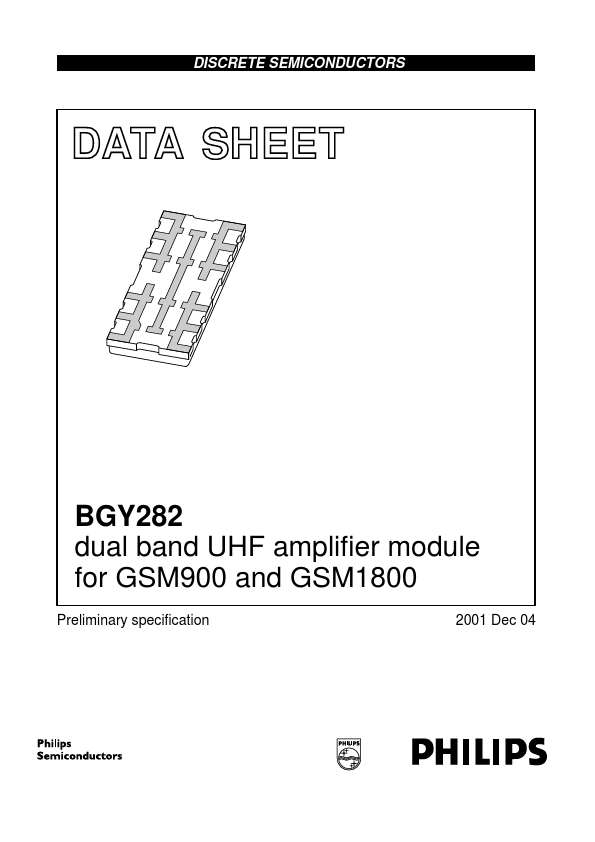

DISCRETE SEMICONDUCTORS DATA SHEET M3D727 BGY282 dual band UHF amplifier module for GSM900 and GSM1800 Preliminary specification 2001 Dec 04 Phili.
