BGY284 Datasheet - NXP

Power amplifier

BGY284 Features

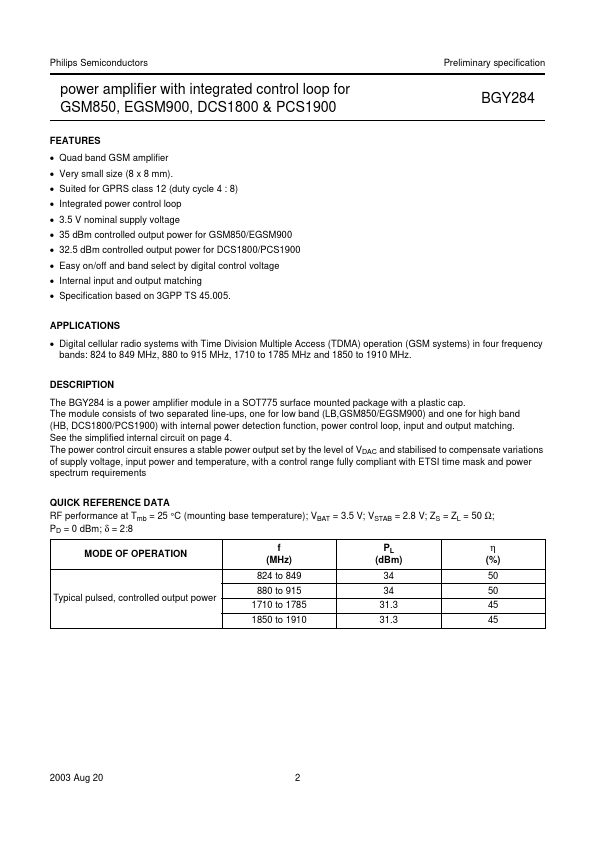

* Quad band GSM amplifier

* Very small size (8 x 8 mm).

* Suited for GPRS class 12 (duty cycle 4 : 8)

* Integrated power control loop

* 3.5 V nominal supply voltage

* 35 dBm controlled output power for GSM850/EGSM900

* 32.5 dBm controlled outpu

BGY284 General Description

The BGY284 is a power amplifier module in a SOT775 surface mounted package with a plastic cap. The module consists of two separated line-ups, one for low band (LB,GSM850/EGSM900) and one for high band (HB, DCS1800/PCS1900) with internal power detection function, power control loop, input and output .

BGY284 Datasheet (267.75 KB)

BGY284 Datasheet Preview — Preview of BGY284 PDF

Datasheet Details

Part number:

BGY284

Manufacturer:

NXP ↗

File Size:

267.75 KB

Description:

Power amplifier.

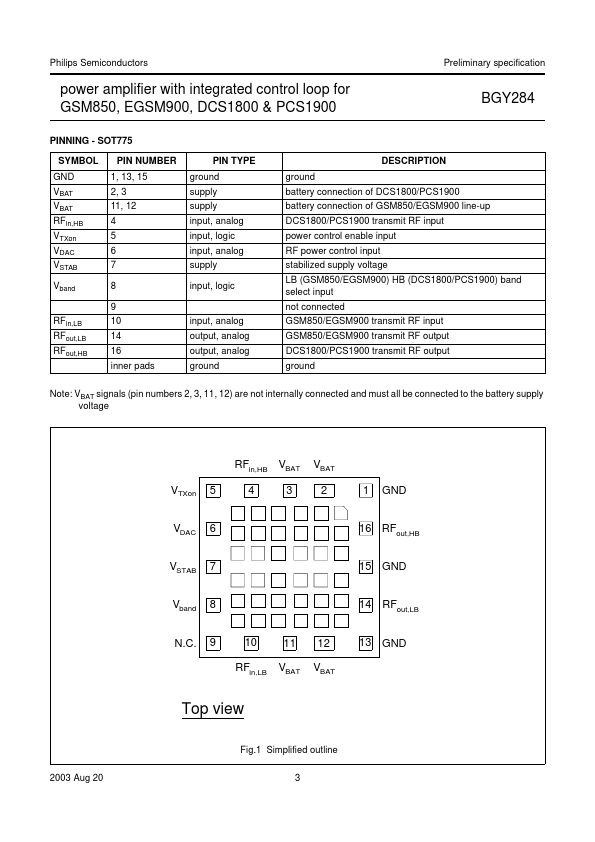

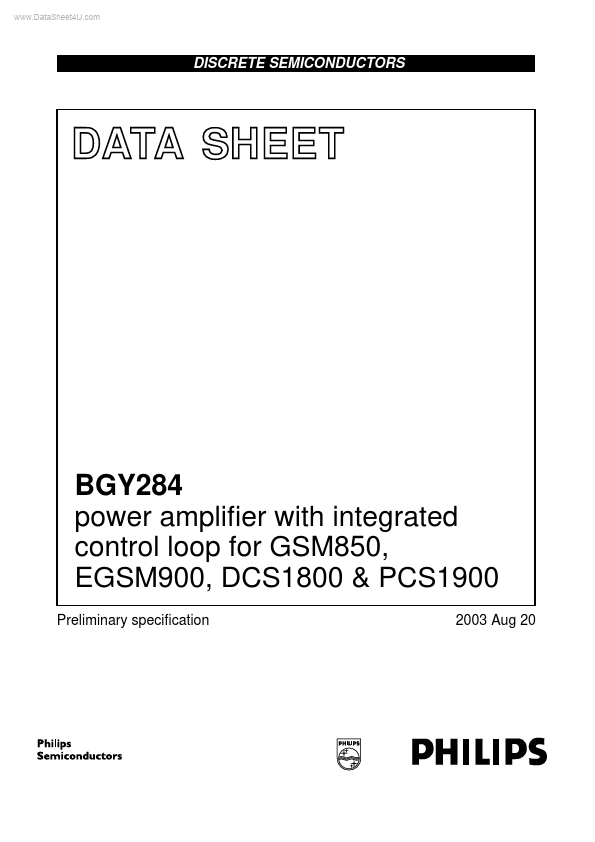

www.DataSheet4U.com DISCRETE SEMICONDUCTORS DATA SHEET BGY284 power amplifier with integrated control loop for GSM850, EGSM900, DCS1800 & PCS1900 P.
