BGY288 Power amplifier

BGY288 Description

www.DataSheet4U.com BGY288 Power amplifier with integrated control loop for GSM850, EGSM900, DCS1800 and PCS1900 Rev.01 * 2 February 2005 Pre.
The BGY288 is a power amplifier module in a SOT775 surface mounted package with a plastic cap.

BGY288 Features

* 1.2.1 General features s Quad band GSM amplifier s 34 dBm controlled output power for GSM850/EGSM900 s Suited for GPRS class 12 (duty cycle δ = 4 : 8) s Integrated power control loop s 3.6 V nominal supply voltage s Very small size (8 mm × 8 mm) s 32.5 dBm controlled output power for DCS1800/PCS1900

BGY288 Applications

* s Digital cellular radio systems with Time Division Multiple Access (TDMA) operation (GSM systems) in four frequency bands: 824 MHz to 849 MHz, 880 MHz to 915 MHz, 1710 MHz to 1785 MHz and 1850 MHz to 1910 MHz. www. DataSheet4U. com Philips Semiconductors BGY288 Power amplifier with integrated contr

📥 Download Datasheet

Preview of BGY288 PDF

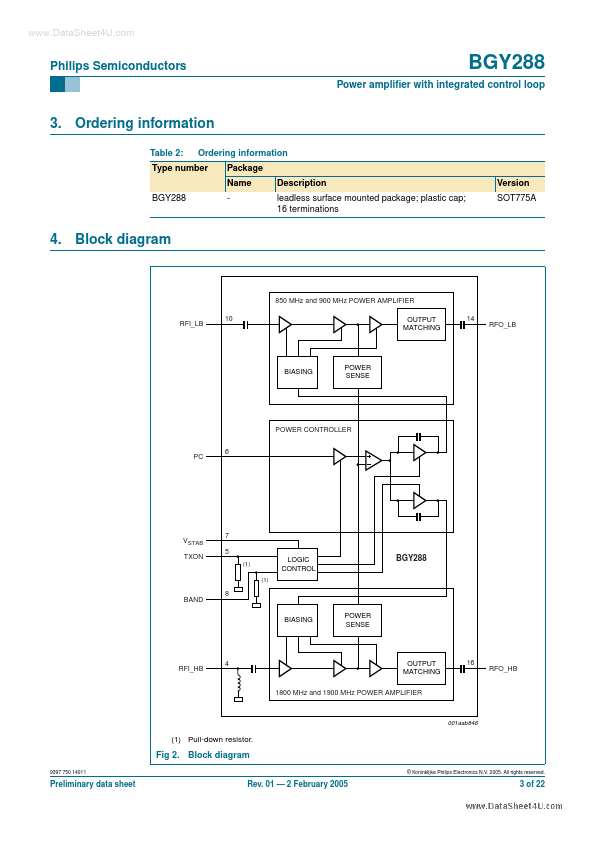

datasheet Preview Page 2 datasheet Preview Page 3
