BGY580 - CATV amplifier

NXP

The BGY580 by NXP is a CATV amplifier. Below is the official datasheet preview.

📥 Download Datasheet

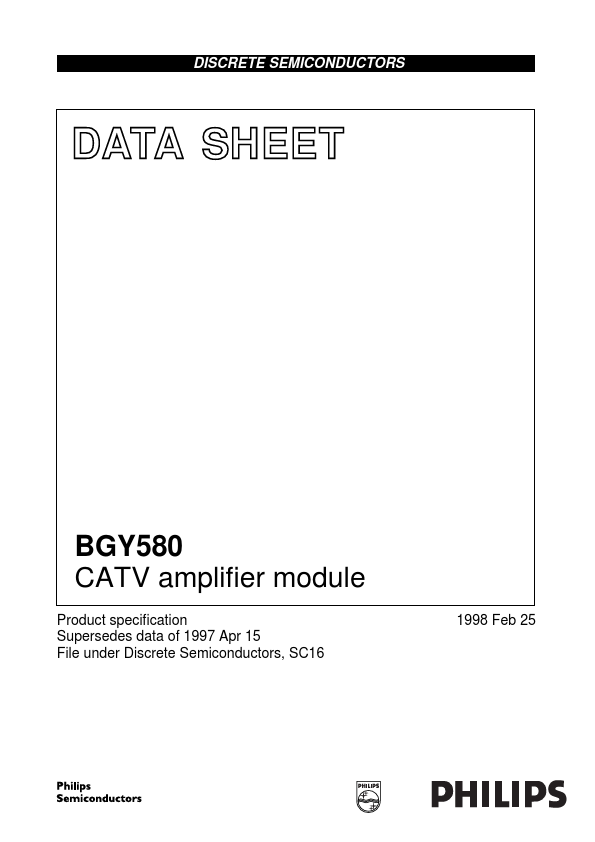

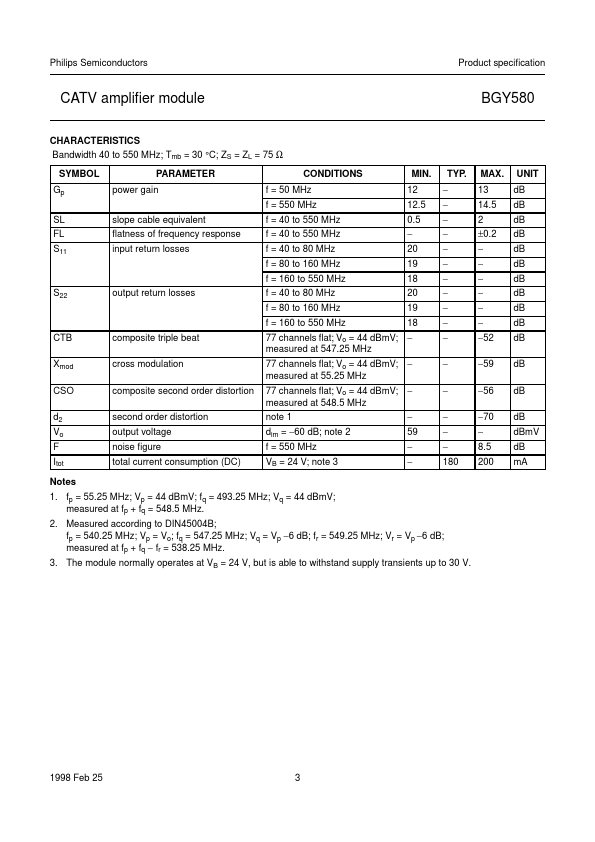

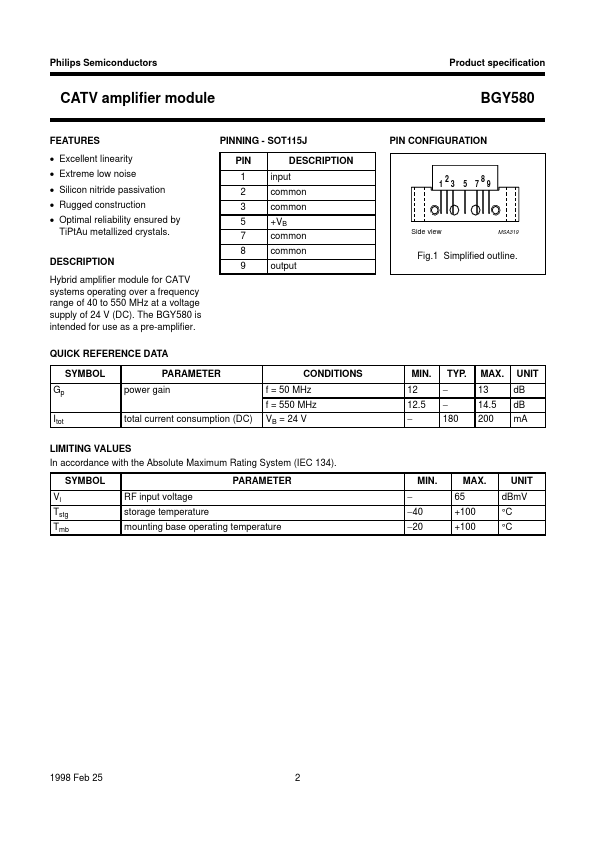

BGY580 CATV amplifier by NXP - Datasheet Preview — Official preview page of the **BGY580** CATV amplifier datasheet (NXP).

Datasheet Details

Part number	BGY580
Manufacturer	NXP
File Size	48.56 KB
Description	CATV amplifier
Datasheet	BGY580_PhilipsSemiconductors.pdf
Additional preview pages of the BGY580 datasheet.

BGY580 Product details

Description

Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of 24 V (DC). TYP. 180 PINNING - SOT115J PIN 1 2 3 5 7 8 9 DESCRIPTION fpage BGY580 PIN CONFIGURATION input common common +VB common common output 1 2 3 8 5

Features

Excellent linearity.
Extreme low noise.
Silicon nitride passivation.
Rugged construction.
Optimal reliability ensured by TiPtAu metallized crystals.
