BGY587 Datasheet - NXP

CATV amplifier

BGY587 General Description

Hybrid amplifier modules for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of 24 V (DC). The BGY586 is intended for use as a pre-amplifier and BGY587 as a final amplifier. QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) BGY.

BGY587 Datasheet (15.50 KB)

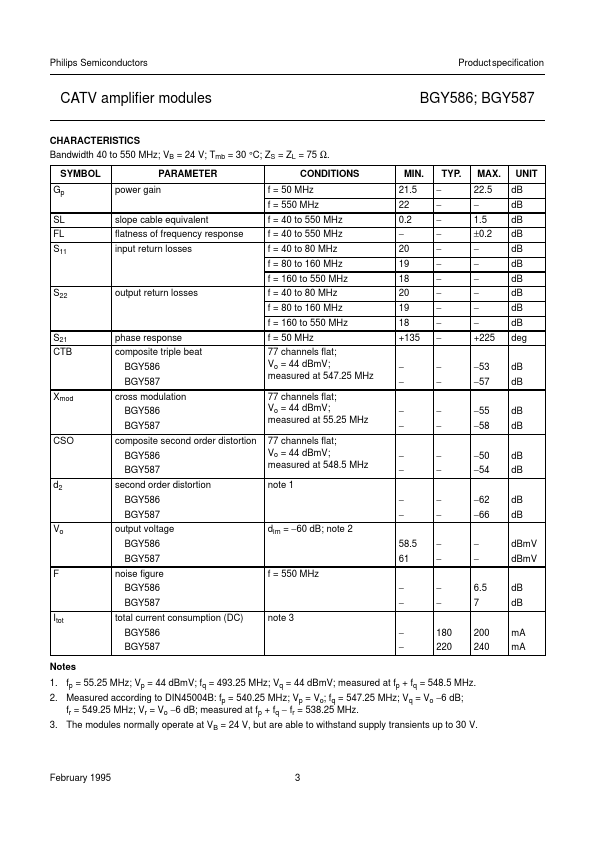

BGY587 Datasheet Preview — Preview of BGY587 PDF

Datasheet Details

Part number:

BGY587

Manufacturer:

NXP ↗

File Size:

15.50 KB

Description:

Catv amplifier.
DISCRETE SEMICONDUCTORS DATA SHEET BGY586; BGY587 CATV amplifier modules Product speciﬁcation File under Discrete Semiconductors, SC16 February 1995.
