BGY583 Datasheet - NXP

CATV amplifier

BGY583 General Description

Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of 24 V (DC). QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) CONDITIONS f = 50 MHz f = 550 MHz VB = 24 V MIN. 13.5 14.5 * TYP. *

BGY583 Datasheet (48.54 KB)

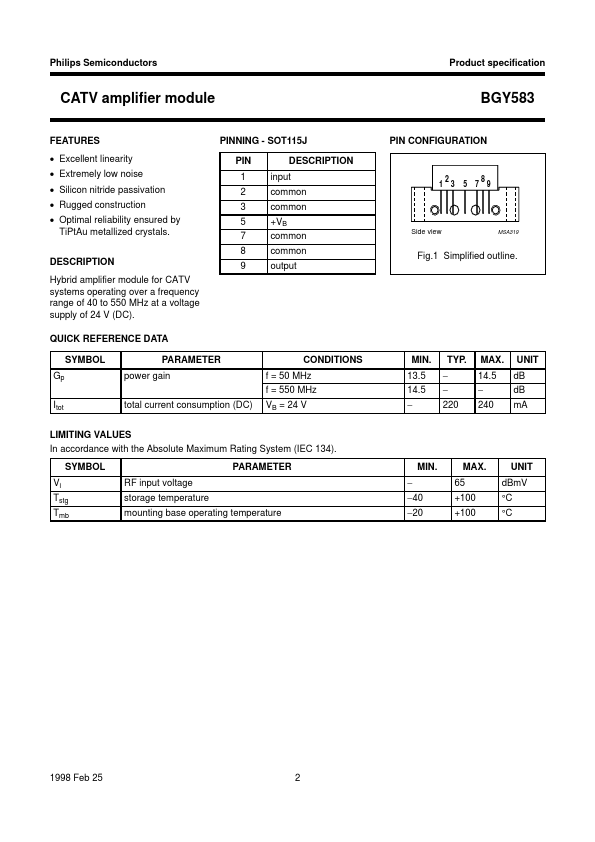

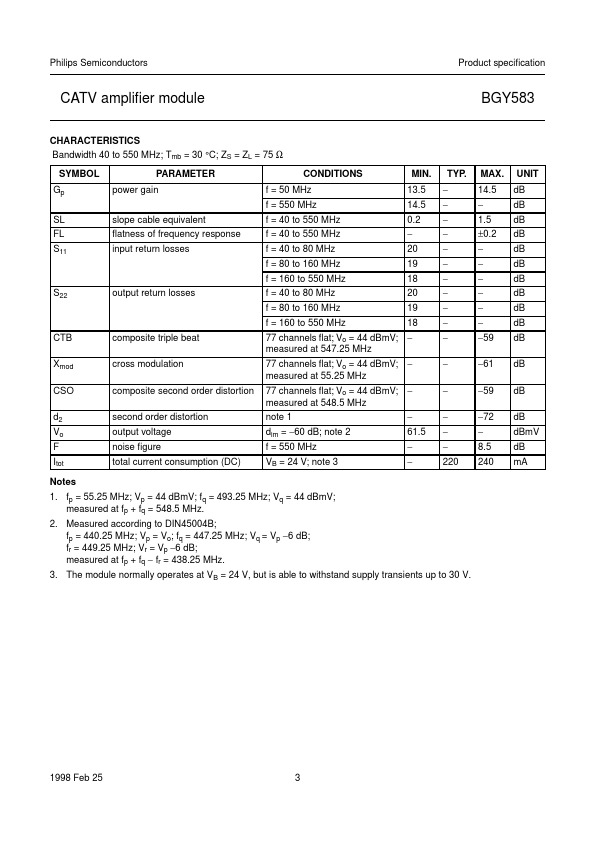

BGY583 Datasheet Preview — Preview of BGY583 PDF

Datasheet Details

Part number:

BGY583

Manufacturer:

NXP ↗

File Size:

48.54 KB

Description:

Catv amplifier.
DISCRETE SEMICONDUCTORS DATA SHEET BGY583 CATV amplifier module Product speciﬁcation Supersedes data of 1997 Apr 14 File under Discrete Semiconducto.
