BGY585A - CATV amplifier

NXP

The BGY585A by NXP is a CATV amplifier. Below is the official datasheet preview.

📥 Download Datasheet

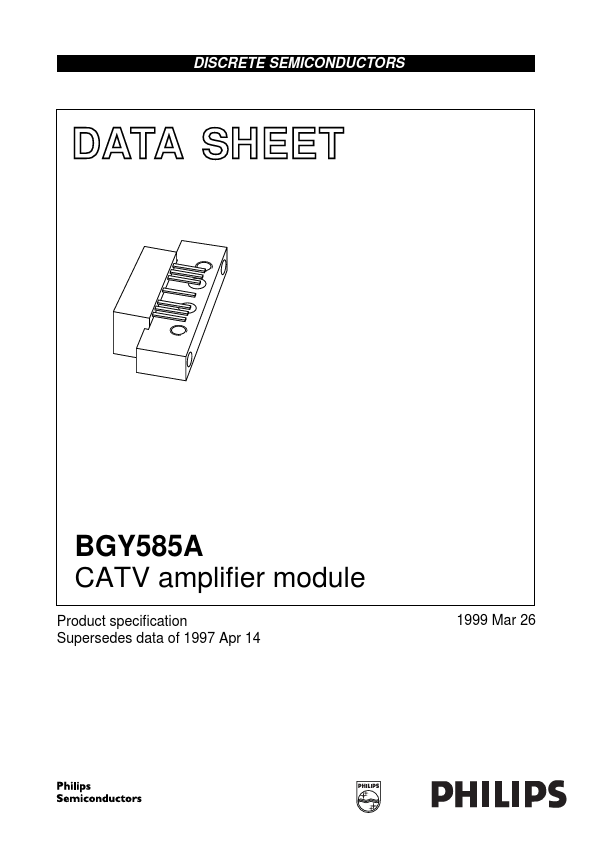

BGY585A CATV amplifier by NXP - Datasheet Preview — Official preview page of the **BGY585A** CATV amplifier datasheet (NXP).

Datasheet Details

Part number	BGY585A
Manufacturer	NXP
File Size	61.85 KB
Description	CATV amplifier
Datasheet	BGY585A_PhilipsSemiconductors.pdf

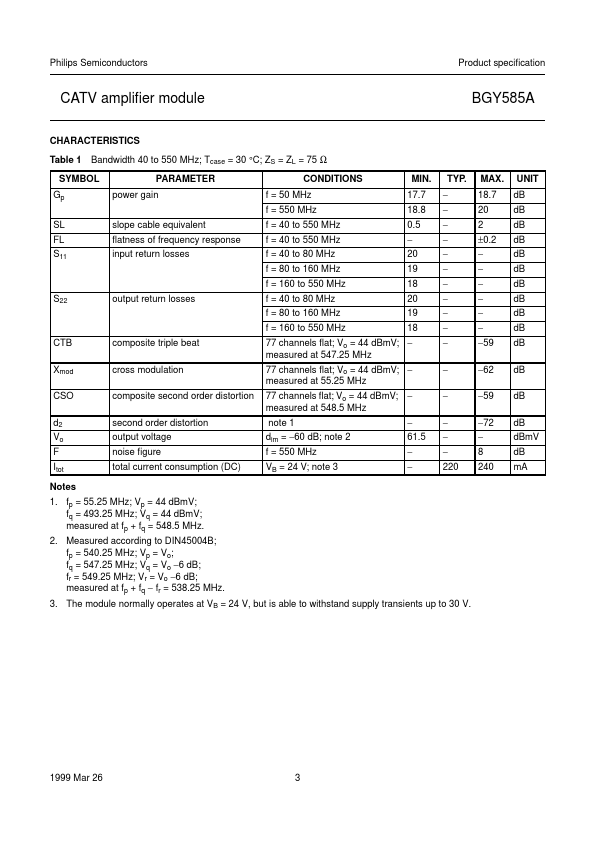

Additional preview pages of the BGY585A datasheet.

BGY585A Product details

Description

Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of 24 V (DC). TYP. 220 PINNING - SOT115J PIN 1 2 3 5 7 8 9 DESCRIPTION input common common +VB common common output Side view fpage BGY585A PIN CONFIGURATION 1 2 3 8 5

Features

Excellent linearity.
Extremely low noise.
Silicon nitride passivation.
Rugged construction.
Optimal reliability ensured by TiPtAu metallized crystals.
