CATV amplifier

BGY585 General Description

Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of 24 V (DC). Intended for use as a final amplifier. QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) CONDITIONS f = 50 MHz f = 550 MHz VB = 24 V MIN..

BGY585 Datasheet (52.78 KB)

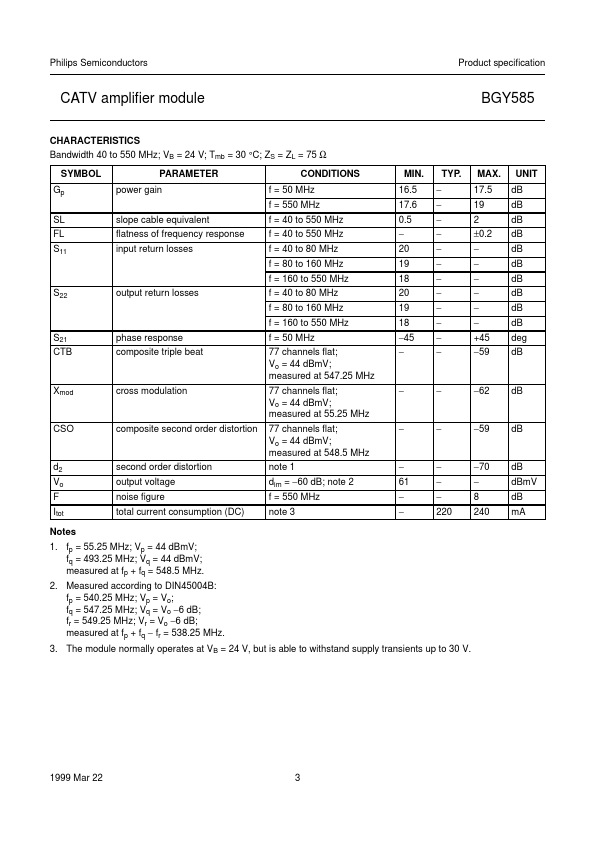

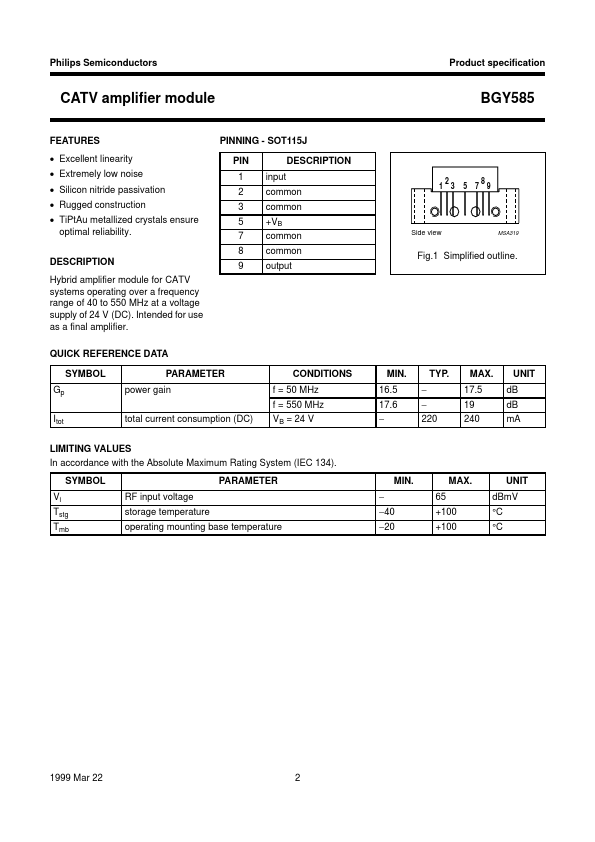

BGY585 Datasheet Preview — Preview of BGY585 PDF

Datasheet Details

Part number:

BGY585

Manufacturer:

NXP ↗

File Size:

52.78 KB

Description:

Catv amplifier.
DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D252 BGY585 CATV amplifier module Product speciﬁcation Supersedes data of February 1995 1999 Ma.
