* Low RDS(on)
* Direct interface to C-MOS
* High-speed switching
* No second breakdown PINNING - TO-92 VARIANT 1 2 3 = source = gate = drain QUICK REFERENCE DATA Drain-source voltage Gate-source voltage (open drain) Drain current (DC) Total power dissipation up to Tam
BS250
50.00 KB
P-channel enhancement mode vertical d-mos transistor.
DISCRETE SEMICONDUCTORS

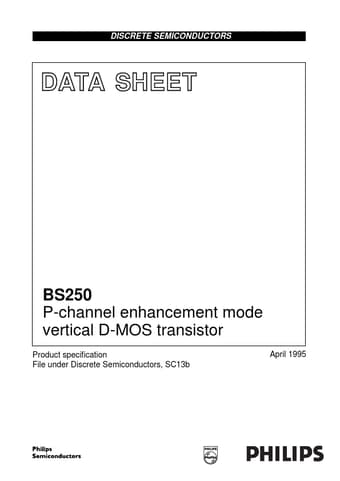

DATA SHEET
BS250 P-channel enhancement mode vertical D-MOS transistor
Product specification File under Discrete Semiconductor.
📁 Related Datasheet
BS250 - P-CHANNEL ENHANCEMENT MODE DMOS TRANSISTOR
(Diodes Incorporated)
BS250
P-CHANNEL ENHANCEMENT MODE DMOS TRANSISTOR Features
· · · · High Input Impedance Fast Switching Speed CMOS Logic Compatible Input No Thermal Run.
BS250 - DMOS Transistors (P-Channel)
(General Semiconductor)
BS250
DMOS Transistors (P-Channel)
TO-92
.181 (4.6) min. .492 (12.5) .181 (4.6) .142 (3.6)
FEATURES ♦ ♦ ♦ ♦ ♦ ♦
High input impedance High-speed switc.
BS250 - P-Channel 60-V (D-S) MOSFET
(Vishay Siliconix)
TP0610L/T, VP0610L/T, BS250
Vishay Siliconix
P-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
Part Number
TP0610L TP0610T VP0610L VP0610T BS250
V(BR)DSS .
BS250CSM4 - P-CHANNEL TRANSISTOR
(Seme LAB)
BS250CSM4
MECHANICAL DATA Dimensions in mm (inches)
P–CHANNEL ENHANCEMENT MODE IN A CERAMIC SURFACE MOUNT PACKAGE FOR
HIGH REL APPLICATIONS
3.81 ± .
BS250F - P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
(Zetex Semiconductors)
SOT23 P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
ISSUE 3 - JANUARY 1996
BS250F
D G S
PARTMARKING DETAIL MX
ABSOLUTE MAXIMUM RATINGS.
PARAMETER .
BS250KL - P-Channel MOSFET
(Vishay)
New Product
TP0610KL/BS250KL
Vishay Siliconix
P-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
V(BR)DSS(min) (V)
−60
rDS(on) (W)
6 @ VGS = −10 V 10 @ .
BS250P - P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
(Zetex Semiconductors)
P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
ISSUE 2 SEPT 93 FEATURES * 45 Volt VDS * RDS(on)=14Ω
BS250P
D G
S
REFER TO ZVP2106A FOR GRAPHS
ABS.
