* VDSS = 45V
* ID = 0.18A
* rdson = 14 ohms
* Hermetic Surface Mount Package
* Screening Option Available ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VDS Drain
* Source Voltage VGS Gate
* Source Voltage ID Continuous Dra

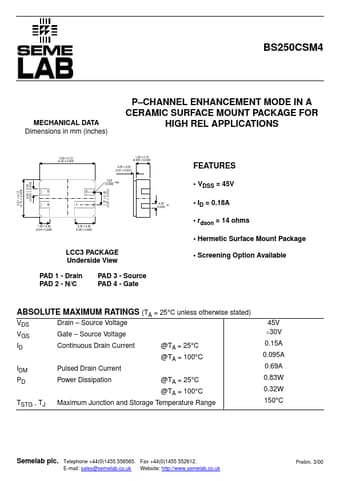

BS250CSM4 Datasheet (16.99 KB)
BS250CSM4
Seme LAB
16.99 KB
P-channel transistor.
BS250CSM4
MECHANICAL DATA Dimensions in mm (inches)
P
*CHANNEL ENHANCEMENT MODE IN A CERAMIC SURFACE MOUNT PACKAGE FOR
HIGH REL APPLICATIONS
.
