Part number:
BS250KL
Manufacturer:
File Size:
89.30 KB
Description:
P-channel mosfet.
New Product

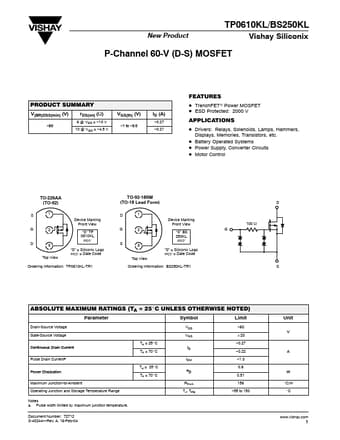

TP0610KL/BS250KL
Vishay Siliconix
P-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
V(BR)DSS(min) (V)
*60
rDS(on) (W)
6 @ VGS =
* D TrenchFETr Power MOSFET D ESD Protected: 2000 V APPLICATIONS D Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc. D Battery Operated Systems D Power Supply, Converter Circuits D Motor Control TO-226AA (TO-92) S1 G2 D3 Top View Device Marking Front View “S” TP 0610
BS250KL
89.30 KB
P-channel mosfet.
New Product
TP0610KL/BS250KL
Vishay Siliconix
P-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
V(BR)DSS(min) (V)
*60
rDS(on) (W)
6 @ VGS =
