BUK9606-55B, BUK9506-55B Datasheet - NXP

BUK9606-55B (BUK9x06-55B) N-channel TrenchMOSTM logic level FET

BUK9606-55B Features

* s TrenchMOS™ technology s 175 °C rated s Q101 compliant s Logic level compatible. 1.3 Applications s Automotive systems s Motors, lamps and solenoids s 12 V and 24 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 679 mJ s ID ≤ 75 A s RDSon = 5.1 mΩ (typ) s Ptot ≤ 25

BUK9506-55B_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: BUK9606-55B, BUK9506-55B. Please refer to the document for exact specifications by model.

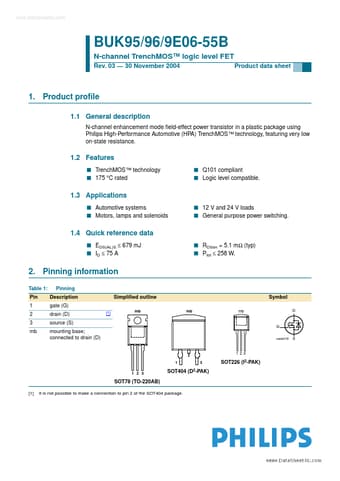

BUK9606-55B Datasheet Preview Page 2 BUK9606-55B Datasheet Preview Page 3

Datasheet Details

Part number:

BUK9606-55B, BUK9506-55B

Manufacturer:

NXP ↗

File Size:

154.65 KB

Description:

(buk9x06-55b) n-channel trenchmostm logic level fet.

Note:

This datasheet PDF includes multiple part numbers: BUK9606-55B, BUK9506-55B.
Please refer to the document for exact specifications by model.
