BUK9606-40B, BUK9506-40B - N-Channel MOSFET

BUK9606-40B Description

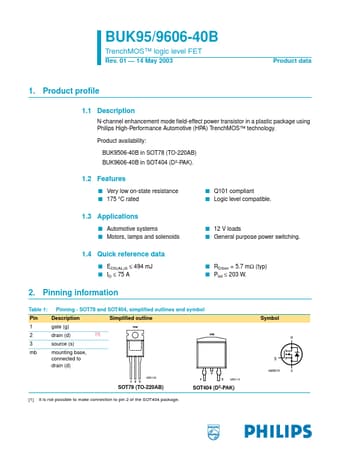

BUK95/9606-40B TrenchMOS™ logic level FET Rev.01 * 14 May 2003 Product data 1.Product profile 1.1 .
N-channel enhancement mode field-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

BUK9606-40B Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 494 mJ s ID ≤ 75 A s RDSon = 5.7 mΩ (typ) s Ptot ≤ 203 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT78 and SOT404, simplified outlines and symbol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BUK9606-40B, BUK9506-40B. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BUK9606-40B, BUK9506-40B
Manufacturer
NXP ↗ Semiconductors
File Size
306.13 KB
Datasheet
BUK9506-40B-NXPSemiconductors.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: BUK9606-40B, BUK9506-40B.
Please refer to the document for exact specifications by model.
