BUK9605-30A - TrenchMOS transistor Logic level FET

Datasheet Summary

Description

N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mounting.

Features

  • very low on-state resistance. It is intended for use in automotive and general purpose switching.

📥 Download Datasheet

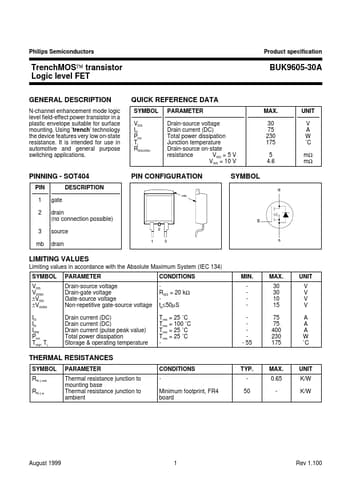

Datasheet preview – BUK9605-30A

Datasheet Details

Part number BUK9605-30A
Manufacturer NXP
File Size 54.66 KB
Description TrenchMOS transistor Logic level FET
Datasheet download datasheet BUK9605-30A Datasheet
Additional preview pages of the BUK9605-30A datasheet.

📁 Similar Datasheet

Other Datasheets by NXP
  • BUK9604-40A - (BUK9x04-40A) TrenchMOS logic level FET
  • BUK9606-30 - TrenchMOS transistor Logic level FET
  • BUK9606-55B - (BUK9x06-55B) N-channel TrenchMOSTM logic level FET
  • BUK9607-30B - (BUK9x07-30B) TrenchMOS logic level FET
  • BUK9608-55 - TrenchMOS transistor Logic level FET
  • BUK9608-55 - TrenchMOS transistor Logic level FET
  • BUK9608-55A - (BUK9508-55A / BUK9608-55A) TrenchMOS logic level FET
  • BUK9609-40B - Trenchmos Logic Level Fet

Full PDF Text Transcription

Click to expand full text
Philips Semiconductors Product specification TrenchMOS™ transistor Logic level FET GENERAL DESCRIPTION N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mounting. Using ’trench’ technology the device features very low on-state resistance. It is intended for use in automotive and general purpose switching applications. BUK9605-30A QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 5 V VGS = 10 V MAX. 30 75 230 175 5 4.
