BYX101 Datasheet - NXP

High-voltage soft-recovery controlled avalanche rectifiers

BYX101 Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Guaranteed avalanche energy absorption capability

* Recovery times ranging from 600 to 50 ns

* Soft-recovery switching characteristics

BYX101 General Description

Rugged glass package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. The package is designed to be used in an insulating medium such as resin, oil or SF6 gas. handbook, halfpage BYX101G;.

BYX101 Datasheet (41.48 KB)

BYX101 Datasheet Preview — Preview of BYX101 PDF

Datasheet Details

Part number:

BYX101

Manufacturer:

NXP ↗

File Size:

41.48 KB

Description:

High-voltage soft-recovery controlled avalanche rectifiers.

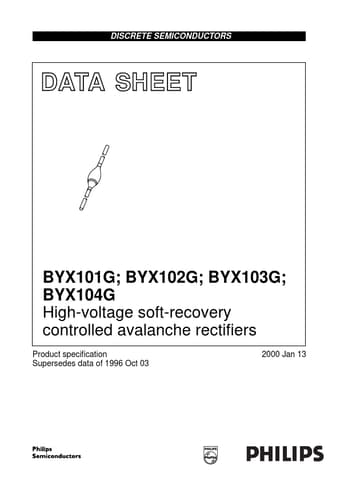

DISCRETE SEMICONDUCTORS DATA SHEET M3D354 BYX101G; BYX102G; BYX103G; BYX104G High-voltage soft-recovery controlled avalanche rectifiers Product spe.
