BYX105G Datasheet - NXP

High-voltage soft-recovery controlled avalanche rectifiers

BYX105G Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Guaranteed avalanche energy absorption capability

* Recovery times ranging from 600 to 50 ns

* Soft-recovery switching characteristics

BYX105G General Description

Rugged glass package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. The package is designed to be used in an insulating medium such as resin, oil or SF6 gas. LIMITING VALUES In accordanc.

BYX105G Datasheet (41.49 KB)

BYX105G Datasheet Preview — Preview of BYX105G PDF

Datasheet Details

Part number:

BYX105G

Manufacturer:

NXP ↗

File Size:

41.49 KB

Description:

High-voltage soft-recovery controlled avalanche rectifiers.

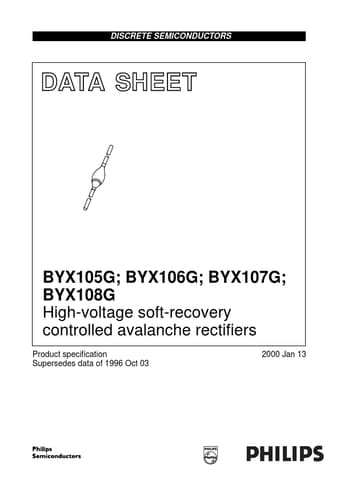

DISCRETE SEMICONDUCTORS DATA SHEET M3D354 BYX105G; BYX106G; BYX107G; BYX108G High-voltage soft-recovery controlled avalanche rectifiers Product spe.
