BYX103G Datasheet - NXP

BYX103G High-voltage soft-recovery controlled avalanche rectifiers

Rugged glass package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. The package is designed to be used in an insulating medium such as resin, oil or SF6 gas. handbook, halfpage BYX101G;.

BYX103G Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Guaranteed avalanche energy absorption capability

* Recovery times ranging from 600 to 50 ns

* Soft-recovery switching characteristics

BYX103G_PhilipsSemiconductors.pdf

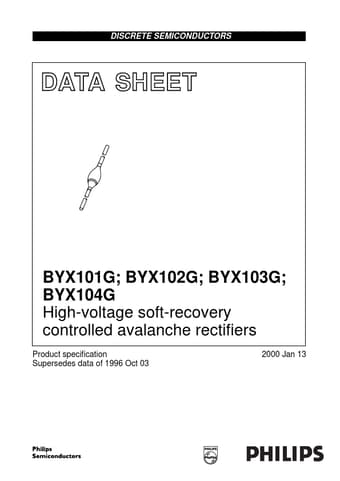

Preview of BYX103G PDF
BYX103G Datasheet Preview Page 2 BYX103G Datasheet Preview Page 3

Datasheet Details

Part number:

BYX103G

Manufacturer:

NXP ↗

File Size:

41.48 KB

Description:

High-voltage soft-recovery controlled avalanche rectifiers.
