BYX102G Datasheet - NXP

BYX102G High-voltage soft-recovery controlled avalanche rectifiers

Rugged glass package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. The package is designed to be used in an insulating medium such as resin, oil or SF6 gas. handbook, halfpage BYX101G;.

BYX102G Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Guaranteed avalanche energy absorption capability

* Recovery times ranging from 600 to 50 ns

* Soft-recovery switching characteristics

BYX102G Datasheet (41.48 KB)

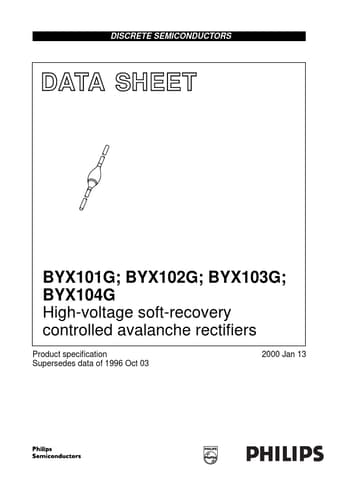

Preview of BYX102G PDF
BYX102G Datasheet Preview Page 2 BYX102G Datasheet Preview Page 3

Datasheet Details

Part number:

BYX102G

Manufacturer:

NXP ↗

File Size:

41.48 KB

Description:

High-voltage soft-recovery controlled avalanche rectifiers.
