BYX104G Datasheet - NXP

BYX104G High-voltage soft-recovery controlled avalanche rectifiers

Rugged glass package, using a high temperature alloyed construction. This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. The package is designed to be used in an insulating medium such as resin, oil or SF6 gas. handbook, halfpage BYX101G;.

BYX104G Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Guaranteed avalanche energy absorption capability

* Recovery times ranging from 600 to 50 ns

* Soft-recovery switching characteristics

BYX104G_PhilipsSemiconductors.pdf

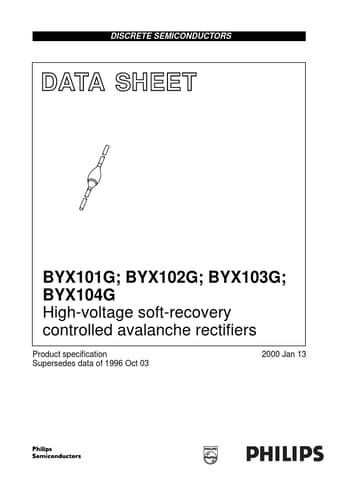

Preview of BYX104G PDF
BYX104G Datasheet Preview Page 2 BYX104G Datasheet Preview Page 3

Datasheet Details

Part number:

BYX104G

Manufacturer:

NXP ↗

File Size:

41.48 KB

Description:

High-voltage soft-recovery controlled avalanche rectifiers.
