CBTL06141 Datasheet, multiplexer, NXP

CBTL06141 Features

  • Multiplexer
  • 1 : 2 switching or 2 : 1 multiplexing of DisplayPort (v1.1 - 2.7 Gbit/s) or PCI Express (v1.1 - 2.5 Gbit/s) signals ‹ 4 high-speed differential channels with 2 : 1 muxing/swit

PDF File Details

Part number:

CBTL06141

Manufacturer:

NXP ↗

File Size:

125.39kb

Download:

📄 Datasheet

Description:

Gen1 display 2 : 1 multiplexer. The CBTL06141 is a six-channel (‘hex’) multiplexer for DisplayPort and PCI Express applications at Generation 1 (‘Gen1’) speeds. It p

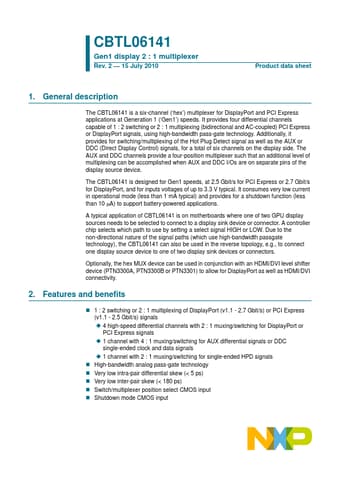

Datasheet Preview: CBTL06141 📥 Download PDF (125.39kb)
Page 2 of CBTL06141 Page 3 of CBTL06141

CBTL06141 Application

  • Applications at Generation 1 (‘Gen1’) speeds. It provides four differential channels capable of 1 : 2 switching or 2 : 1 multiplexing (bidirectional
