CBTL06GP212

High performance DisplayPort switch

CBTL06GP212 Features

* 1 : 2 switching or 2 : 1 multiplexing of DisplayPort (v1.2 - 5.4 Gbit/s) or PCI Express (v2.0 - 5.0 Gbit/s) signals

* 4 high-speed differential channels with 2 : 1 muxing/switching for DisplayPort or PCI Express signals

* 1 channel with 4 : 1 muxing/switching for AUX at 1 Mbit/s or DDC

CBTL06GP212 General Description

The CBTL06GP212 is a six-channel (‘hex’) multiplexer for DisplayPort and PCI Express applications at Generation 2 (‘Gen2’) speeds. It provides four differential channels capable of 1 : 2 switching or 2 : 1 multiplexing (bidirectional and AC-coupled) PCI Express or DisplayPort signals, using high-ban.

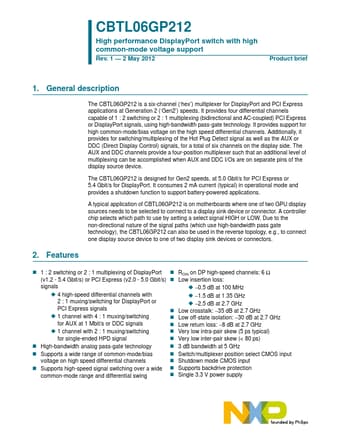

CBTL06GP212 Datasheet (116.58 KB)
