CBTL06DP212 Datasheet, Multiplexer, NXP

CBTL06DP212 Features

  • Multiplexer
  • 1 : 2 switching or 2 : 1 multiplexing of DisplayPort (v1.2 - 5.4 Gbit/s) signals
  • 4 high-speed differential channels with 2 : 1 multiplexing/switching for DisplayPort

PDF File Details

Part number:

CBTL06DP212

Manufacturer:

NXP β†—

File Size:

108.96kb

Download:

πŸ“„ Datasheet

Description:

High-performance displayport gen2 2:1 multiplexer. CBTL06DP212 is a high performance multi-channel Generation 2 multiplexer meant for DisplayPort (DP) v1.2, v1.1a or Embedded DisplayPo

Datasheet Preview: CBTL06DP212 πŸ“₯ Download PDF (108.96kb)

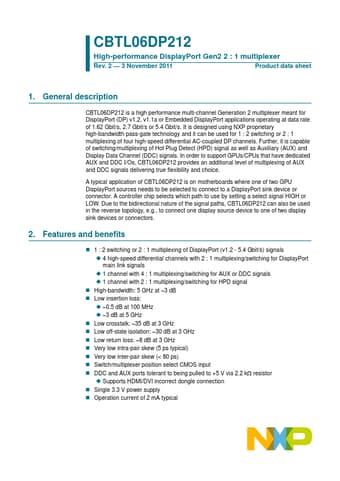

Page 2 of CBTL06DP212 Page 3 of CBTL06DP212

CBTL06DP212 Application

  • Applications operating at data rate of 1.62 Gbit/s, 2.7 Gbit/s or 5.4 Gbit/s. It is designed using NXP proprietary high-bandwidth pass-gate technolo
