CBTL06DP213 - Third generation high-performance DisplayPort multiplexer

Product Overview

NXP

CBTL06DP213 Third generation high-performance DisplayPort multiplexer by NXP - Datasheet Preview — Datasheet preview – CBTL06DP213

Datasheet Details

Part number	CBTL06DP213
Manufacturer	NXP
File Size	238.01 KB
Description	Third generation high-performance DisplayPort multiplexer
Datasheet	CBTL06DP213 Datasheet

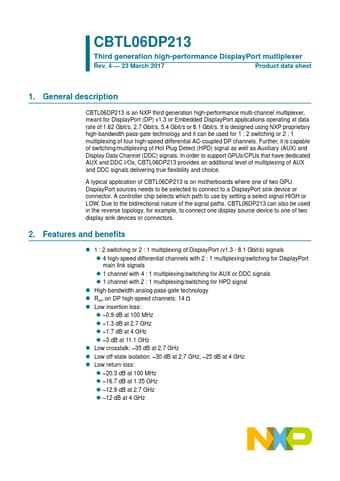

Additional preview pages of the CBTL06DP213 datasheet.

Product details

Description

CBTL06DP213 is an NXP third generation high-performance multi-channel multiplexer, meant for DisplayPort (DP) v1.3 or Embedded DisplayPort applications operating at data rate of 1.62 Gbit/s, 2.7 Gbit/s, 5.4 Gbit/s or 8.1 Gbit/s.

Features

1 : 2 switching or 2 : 1 multiplexing of DisplayPort (v1.3 - 8.1 Gbit/s) signals.
4 high-speed differential channels with 2 : 1 multiplexing/switching for DisplayPort main link signals.
1 channel with 4 : 1 multiplexing/switching for AUX or DDC signals.
1 channel with 2 : 1 multiplexing/switching for HPD signal.
High-bandwidth analog pass-gate technology.
Ron on DP high-speed channels: 14 .
Low insertion loss:.
0.9 dB at 100 MHz.
1.3 dB at 2.7 GHz.
