CBTL06122

High-performance DisplayPort/PCIe Gen2 hex display multiplexer

CBTL06122 Features

* I 1 : 2 multiplexing of DisplayPort (v1.1 - 2.7 Gbit/s) or PCI Express (Gen2 - 5.0 Gbit/s) signals N 4 high-speed differential channels N 1 channel for AUX differential signals or DDC clock and data N 1 channel for HPD I High-bandwidth analog pass-gate technology I Very low intra-pair differential s

CBTL06122 General Description

The CBTL06122 is a six-channel (‘hex’) multiplexer for DisplayPort and PCI Express Gen2 applications. It provides four differential channels capable of switching or multiplexing (bidirectional and AC-coupled) PCI Express Gen2 or DisplayPort signals, using high-bandwidth pass-gate technology. Additio.

CBTL06122 Datasheet (139.69 KB)

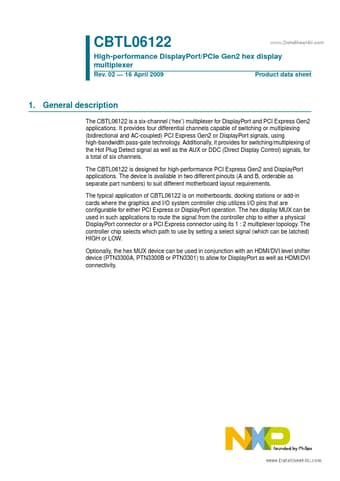

Preview of CBTL06122 PDF

Datasheet Details

Part number:

CBTL06122

Manufacturer:

NXP ↗ Semiconductors

File Size:

139.69 KB

Description:

High-performance displayport/pcie gen2 hex display multiplexer.
CBTL06122 Rev. 02

* 16 April 2009 www.DataSheet4U.com High-performance DisplayPort/PCIe Gen2 hex display multiplexer Product data sheet 1. .
