CBT3251 Features

* 5 Ω switch connection between two ports

* TTL-compatible input levels

* Minimal propagation delay through the switch

* ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101 PIN CONFIGURATION B4 1 B3 B2 B1 A NC O

CBT3251 General Description

The CBT3251 is a 1-of-8 high-speed TTL-compatible FET multiplexer/demultiplexer. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. When output enable (OE) is low, the CBT3251 is enabled. S0, S1,.

CBT3251 Datasheet (124.30 KB)

CBT3251 Datasheet Preview — Preview of CBT3251 PDF

Datasheet Details

Part number:

CBT3251

Manufacturer:

NXP ↗ Semiconductors

File Size:

124.30 KB

Description:

1-of-8 fet multiplexer/demultiplexer.

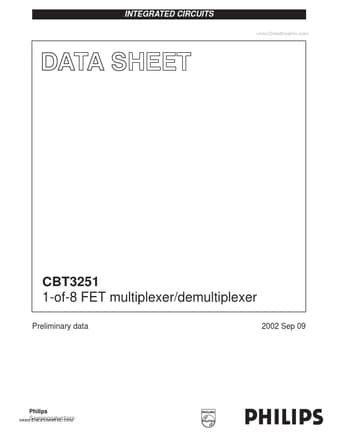

INTEGRATED CIRCUITS www.DataSheet4U.com CBT3251 1-of-8 FET multiplexer/demultiplexer Preliminary data 2002 Sep 09 Philips Semiconductors Philips Se.
