Part number	CBT3861
Manufacturer	NXP Semiconductors
File Size	318.83 KB
Description	10-bit bus switch
Datasheet	CBT3861 Datasheet

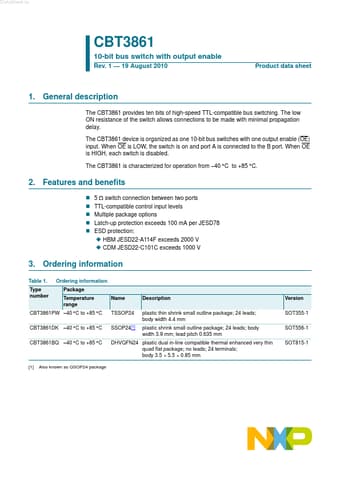

Additional preview pages of the CBT3861 datasheet.

Product details

Description

The CBT3861 provides ten bits of high-speed TTL-compatible bus switching. 40 °C to +85 °C.

Features

5 Ω switch connection between two ports TTL-compatible control input levels Multiple package options Latch-up protection exceeds 100 mA per JESD78 ESD protection: HBM JESD22-A114F exceeds 2000 V CDM JESD22-C101C exceeds 1000 V 3. Ordering information Table 1. Type number Ordering information Package Temperature range Name TSSOP24 SSOP24[1].
