MCXN235, MCXN236 - 150MHz 32-bit MCU

NXP

📥 Download Datasheet

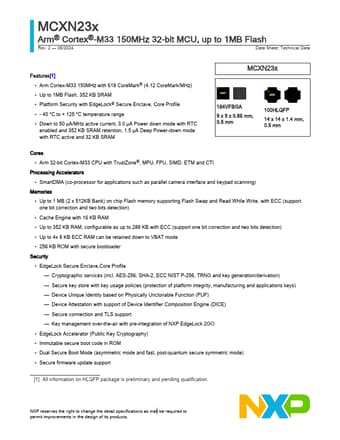

MCXN235 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCXN235, MCXN236. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MCXN235, MCXN236
Manufacturer	NXP ↗
File Size	1.93 MB
Description	150MHz 32-bit MCU
Datasheet	MCXN236-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: MCXN235, MCXN236. Please refer to the document for exact specifications by model.

MCXN235 Product details

Features

1].
Arm Cortex-M33 150MHz with 618 CoreMark® (4.12 CoreMark/MHz).
Up to 1MB Flash, 352 KB SRAM.
Platform Security with EdgeLock® Secure Enclave, Core Profile.
- 40 °C to + 125 °C temperature range.
Down to 50 μA/MHz active current, 3.0 μA Power down mode with RTC enabled and 352 KB SRAM retention, 1.5 μA Deep Power-down mode with RTC active and 32 KB SRAM MCXN23x 184VFBGA 9 x 9 x 0.86 mm, 0.5 mm 100HLQFP 14 x 14 x 1.4 mm, 0.5 mm Cores.
Ar.
