MPSA56 Datasheet - NXP

Datasheet Details

Part number:

MPSA56

Manufacturer:

File Size:

93.31 KB

Description:

Pnp general purpose transistor.

MPSA56, PNP general purpose transistor

PNP transistor in a TO-92; SOT54 plastic package.

NPN complement: MPSA06.

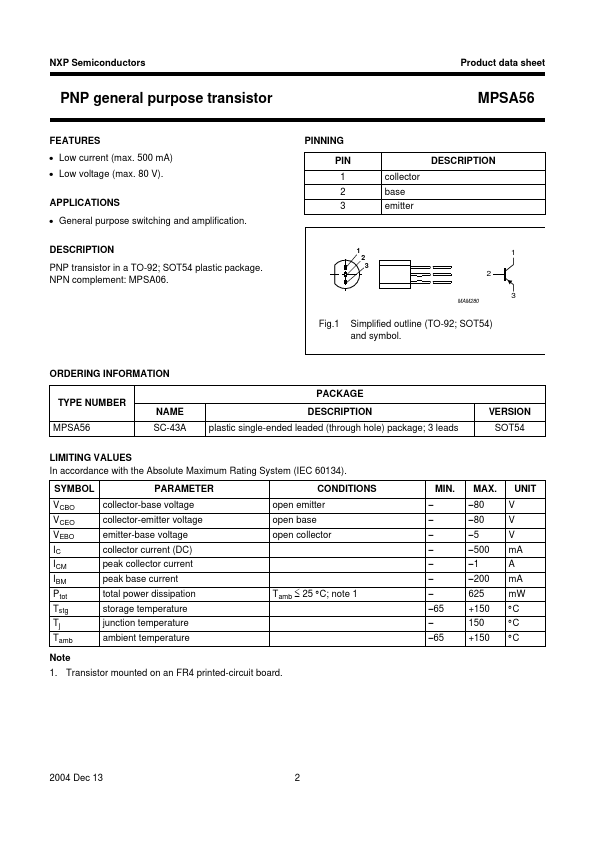

PINNING PIN 1 2 3 collector base emitter DESCRIPTION handbook, halfpage1 2 3 1 2 3 MAM280 Fig.1 Simplified outline (TO-92; SOT54) and symbol.

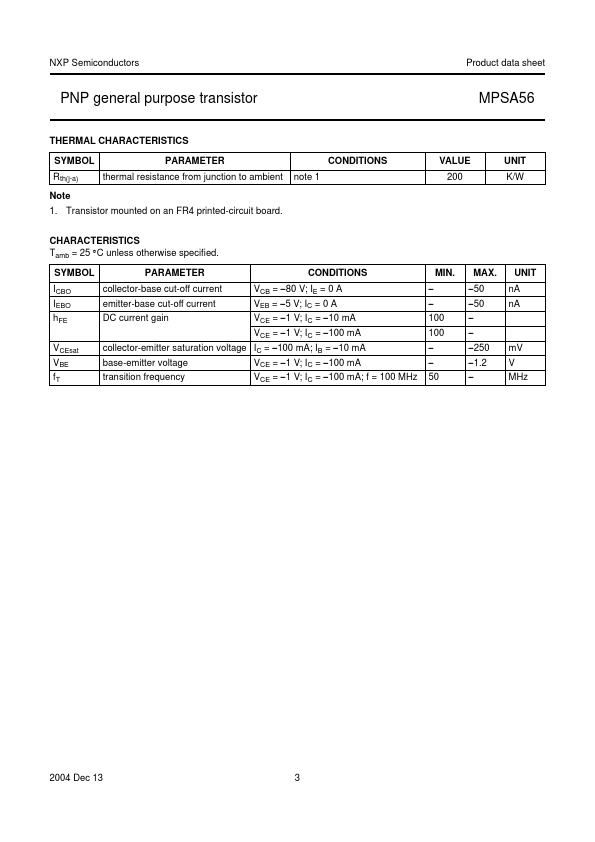

ORDERING INFORMATION TYPE NUMBER MPSA56 NAME SC-43A PACKAGE DESCRIPTION pl
