NX5P2090

Logic controlled high-side power switch

NX5P2090 Features

* Wide supply voltage range from 3 V to 5.5 V

* 30 V tolerant on VBUS

* ISW maximum 2 A continuous current

* Very low ON resistance: 100 m (maximum) at a supply voltage of 4.0 V

* Low-power mode (ground current 20 A typical)

* 1.8 V control logic

* Soft start turn-on sl

NX5P2090 General Description

The NX5P2090 is an advanced power switch for USB OTG applications. It includes under-voltage and over-voltage lockout, over-current, over-temperature, reverse bias and in-rush current protection circuits. These are designed to automatically isolate a VBUS OTG voltage source from a VBUS interface pin.

NX5P2090 Datasheet (554.69 KB)

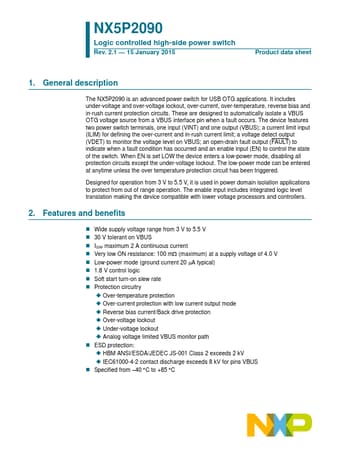

Preview of NX5P2090 PDF

Datasheet Details

Part number:

NX5P2090

Manufacturer:

NXP ↗

File Size:

554.69 KB

Description:

Logic controlled high-side power switch.
