NX5020UNBKW, 50V N-channel Trench MOSFET

NX5020UNBKW 50 V, N-channel Trench MOSFET 10 April 2025 Product data sheet 1.General .
N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT323 (SC70) Surface-Mounted Device (SMD) plastic package using Trench MOSFE.

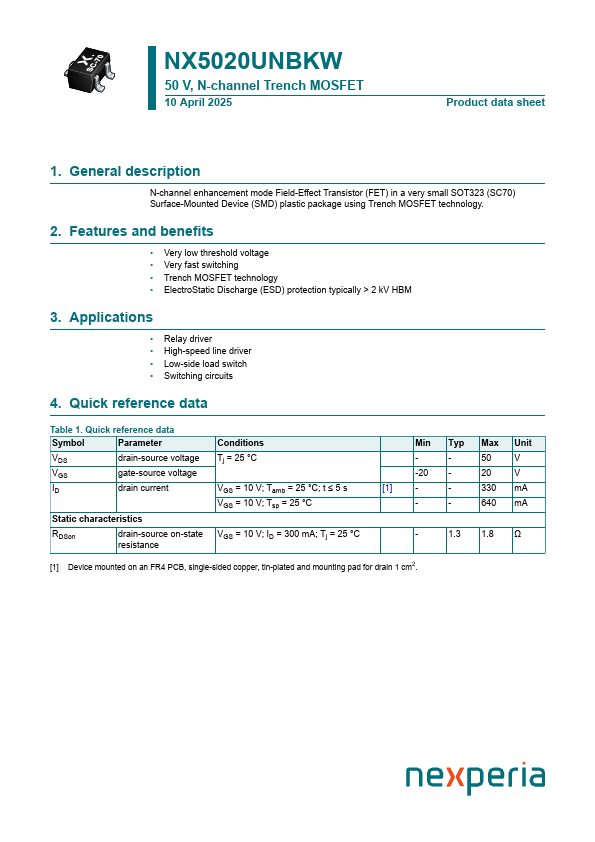

datasheet Preview Page 1 from Datasheet4u.com

NX5020UNBKW-nexperia.pdf

NX5020UNBKW Datasheet Preview — Preview of NX5020UNBKW PDF

Datasheet Details

Part number:

NX5020UNBKW

Manufacturer:

nexperia ↗

File Size:

279.06 KB

Description:

50V N-channel Trench MOSFET

Features

* Very low threshold voltage
* Very fast switching
* Trench MOSFET technology

Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VDS drain-source voltage VGS gate-source voltage ID drain current Static
