NX5P2190

Logic controlled high-side power switch

NX5P2190 Features

* Wide supply voltage range from 3 V to 5.5 V

* 30 V tolerant on VBUS

* ISW maximum 2 A continuous current

* Very low ON resistance: 100 m (maximum) at a supply voltage of 4.0 V

* Low-power mode (ground current 20 A typical)

* 1.8 V control logic

* Soft start turn-on sl

NX5P2190 General Description

The NX5P2190 is an advanced power switch with adjustable current limit. It includes under-voltage and over-voltage lockout, over-current, over-temperature, reverse bias and in-rush current protection circuits. These circuits are designed to isolate a voltage source from a VBUS interface pin automati.

NX5P2190 Datasheet (543.04 KB)

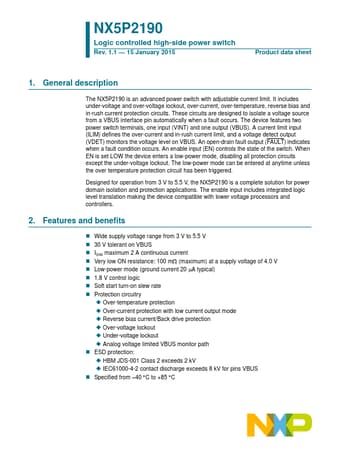

Preview of NX5P2190 PDF
