NX5P2553

Precision adjustable current-limited power switch

NX5P2553 Features

* Wide supply voltage range from 2.5 V to 5.5 V

* ISW maximum 1.5 A continuous current

* 6 % current-limit accuracy at 1.8 A (typical)

* Meets USB current-limiting requirements

* Adjustable current limit from 85 mA to 1800 mA (typical)

* Constant current mode in overcurrent

NX5P2553 General Description

The NX5P2553 is a precision adjustable current-limited power switch. The device includes undervoltage lockout, overtemperature, and reverse bias protection circuits designed to isolate the switch terminals when a fault condition occurs. It also has an overcurrent protection circuit to limit the outp.

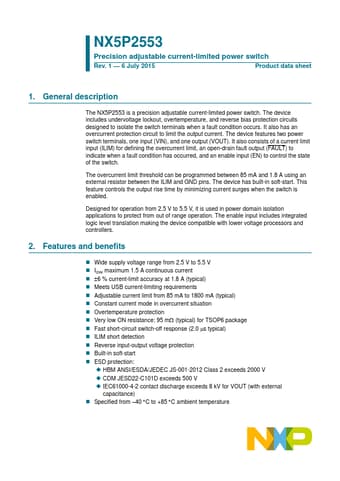

NX5P2553 Datasheet (543.56 KB)
