NX5P2924

Logic controlled high-side power switch

NX5P2924 Features

* Wide supply voltage range from 0.8 V to 5.5 V

* Very low ON resistance:

* 14 m (typical) at a supply voltage of 1.2 V

* 14 m (typical) at a supply voltage of 1.8 V

* High noise immunity

* 1.2 V control logic; Integrated EN pull-down resistor

* High current handling ca

NX5P2924 Datasheet (176.01 KB)

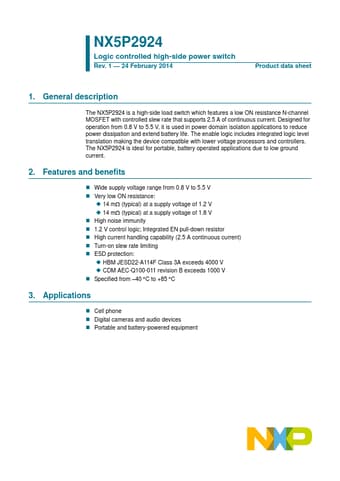

Preview of NX5P2924 PDF

Datasheet Details

Part number:

NX5P2924

Manufacturer:

NXP ↗

File Size:

176.01 KB

Description:

Logic controlled high-side power switch.
