PBSS305PX - PNP Transistor

Name: PBSS305PX
SKU: PBSS305PX-559862

NXP

The PBSS305PX by NXP is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

PBSS305PX PNP Transistor by NXP - Datasheet Preview — Official preview page of the **PBSS305PX** PNP Transistor datasheet (NXP).

Datasheet Details

Part number	PBSS305PX
Manufacturer	NXP
File Size	194.90 KB
Description	PNP Transistor
Datasheet	PBSS305PX_PhilipsSemiconductors.pdf

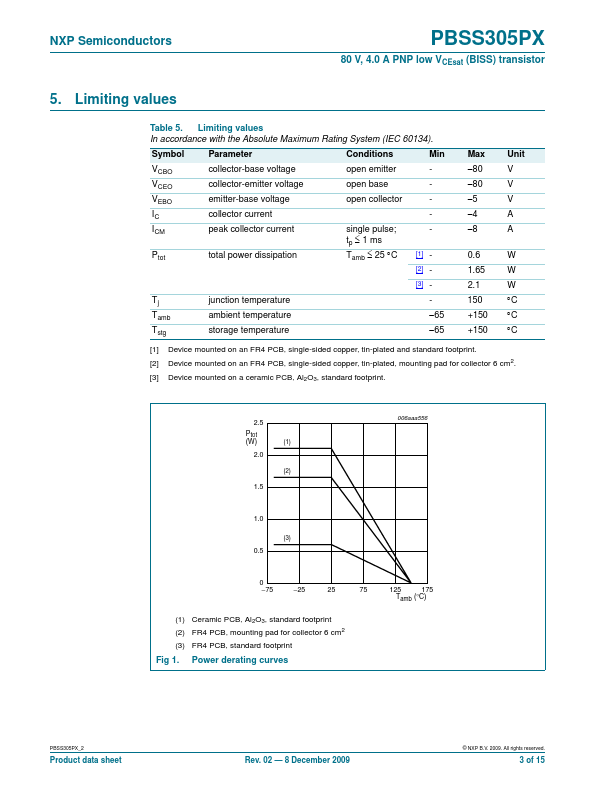

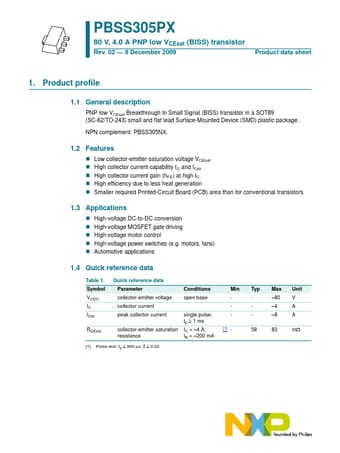

Additional preview pages of the PBSS305PX datasheet.

PBSS305PX Product details

Description

PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT89 (SC-62/TO-243) small and ﬂat lead Surface-Mounted Device (SMD) plastic package.

Features

I I I I I Low collector-emitter saturation voltage VCEsat High collector current capability IC and ICM High collector current gain (hFE) at high IC High efﬁciency due to less heat generation Smaller required Printed-Circuit Board (PCB) area than for conventional transistors 1.3.
