PBSS305PZ PNP Transistor

NXP

Description

www.DataSheet4U.com PBSS305PZ 80 V, 4.5 A PNP low VCEsat (BISS) transistor Rev.01 * 20 September 2006 Product data sheet 1.Product proﬁle .
PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT223 (SC-73) small Surface-Mounted Device (SMD) plastic package.

📥 Download Datasheet

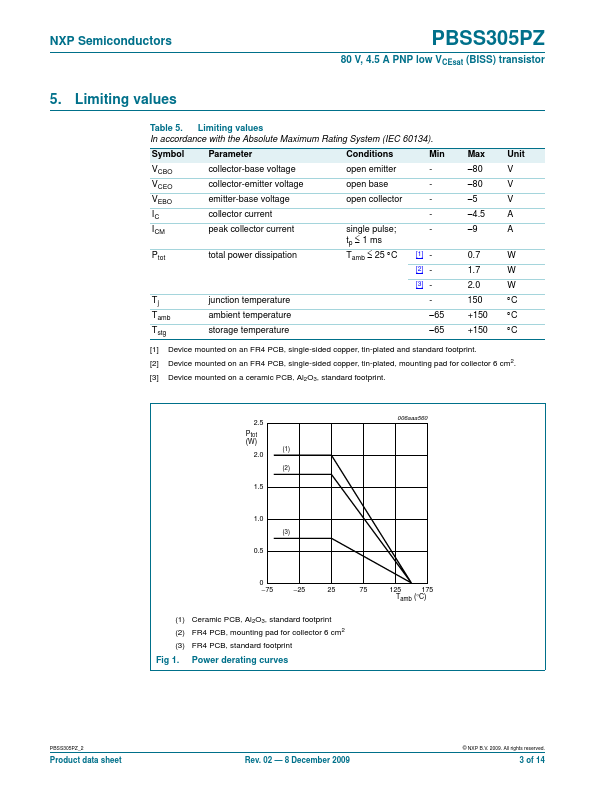

PBSS305PZ Datasheet Preview — Preview of PBSS305PZ PDF

Datasheet Specifications

Part number: PBSS305PZ
Manufacturer: NXP ↗
File Size: 170.19 KB
Datasheet: PBSS305PZ_PhilipsSemiconductors.pdf
Description: PNP Transistor

Applications

* I I I I I High-voltage DC-to-DC conversion High-voltage MOSFET gate driving High-voltage motor control High-voltage power switches (e. g. motors, fans) Automotive applications 1.4 Quick reference data Table 1. Symbol VCEO IC ICM RCEsat [1] Quick reference data Parameter collector-emitter voltage co
