PBYR1540CTB - Rectifier diodes Schottky barrier

Datasheet Summary

Description

Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package.

Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

Features

  • Low forward volt drop.
  • Fast switching.
  • Reverse surge capability.
  • High thermal cycling performance.
  • Low thermal resistance PBYR1545CT, PBYR1545CTB series SYMBOL QUICK.

📥 Download Datasheet

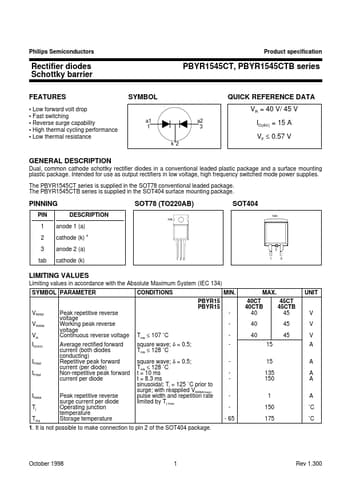

Datasheet preview – PBYR1540CTB

Datasheet Details

Part number PBYR1540CTB
Manufacturer NXP
File Size 43.36 KB
Description Rectifier diodes Schottky barrier
Datasheet download datasheet PBYR1540CTB Datasheet
Additional preview pages of the PBYR1540CTB datasheet.

📁 Similar Datasheet

  • PBY060303T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY100505T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY160808T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY1608xx - (PBY Series) Multilayer Ferrite Chip Beads (Yageo)
  • PBY201209T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY2012xx - (PBY Series) Multilayer Ferrite Chip Beads (Yageo)
  • PBY26x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY27x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY28x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY30x - (PBYxxx) Diode (Iskra Semic Capacitors)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
Philips Semiconductors Product specification Rectifier diodes Schottky barrier FEATURES • Low forward volt drop • Fast switching • Reverse surge capability • High thermal cycling performance • Low thermal resistance PBYR1545CT, PBYR1545CTB series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V a1 1 k 2 a2 3 IO(AV) = 15 A VF ≤ 0.57 V GENERAL DESCRIPTION Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR1545CT series is supplied in the SOT78 conventional leaded package. The PBYR1545CTB series is supplied in the SOT404 surface mounting package.
