PBYR1545CT

Rectifier diodes Schottky barrier

PBYR1545CT Features

* Low forward volt drop

* Fast switching

* Reverse surge capability

* High thermal cycling performance

* Low thermal resistance PBYR1545CT, PBYR1545CTB series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V a1 1 k 2 a2 3 IO(AV) = 15 A VF ≤ 0.57 V GENERAL DE

PBYR1545CT General Description

Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR1545CT series is supplied in the SOT78 conventional leaded packag.

PBYR1545CT Datasheet (43.36 KB)

Rating: 1 ★ (1 votes)

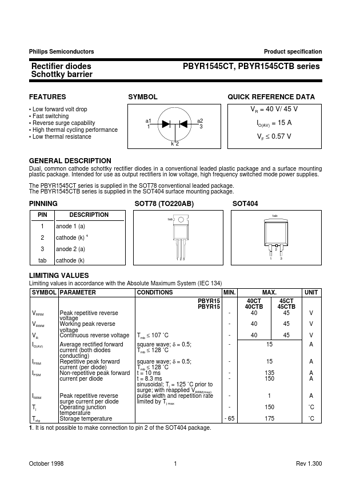

Preview of PBYR1545CT PDF

Datasheet Details

Part number:

PBYR1545CT

Manufacturer:

NXP ↗

File Size:

43.36 KB

Description:

Rectifier diodes schottky barrier.
