PBYR1545CTF Datasheet - NXP

PBYR1545CTF - Rectifier diodes Schottky barrier

Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab.

Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

The PBYR1545CTF series is supplied in the SOT186 package.

The PBYR1545CTX series is supplie

PBYR1545CTF Features

* Low forward volt drop

* Fast switching

* Reverse surge capability

* High thermal cycling performance

* Isolated mounting tab PBYR1545CTF, PBYR1545CTX series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V IO(AV) = 15 A VF ≤ 0.57V a1 1 k 2 a2 3 GENERAL DESC

PBYR1545CTF_PhilipsSemiconductors.pdf

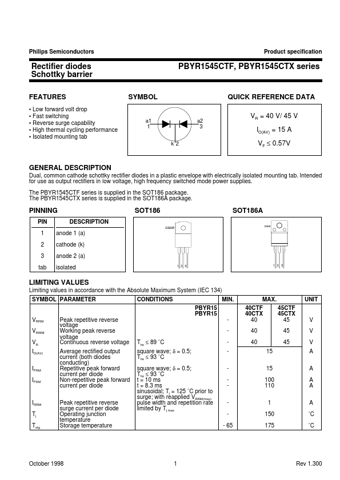

Preview of PBYR1545CTF PDF
PBYR1545CTF Datasheet Preview Page 2 PBYR1545CTF Datasheet Preview Page 3

Datasheet Details

Part number:

PBYR1545CTF

Manufacturer:

NXP ↗

File Size:

44.78 KB

Description:

Rectifier diodes schottky barrier.
