PBYR1545CTX - Rectifier diodes Schottky barrier

Datasheet Summary

Description

Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab.

Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

The PBYR1545CTF series is supplied in the SOT186 package.

Features

  • Low forward volt drop.
  • Fast switching.
  • Reverse surge capability.
  • High thermal cycling performance.
  • Isolated mounting tab PBYR1545CTF, PBYR1545CTX series SYMBOL QUICK.

📥 Download Datasheet

Datasheet preview – PBYR1545CTX

Datasheet Details

Part number PBYR1545CTX
Manufacturer NXP
File Size 44.78 KB
Description Rectifier diodes Schottky barrier
Datasheet download datasheet PBYR1545CTX Datasheet
Additional preview pages of the PBYR1545CTX datasheet.

📁 Similar Datasheet

  • PBY060303T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY100505T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY160808T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY1608xx - (PBY Series) Multilayer Ferrite Chip Beads (Yageo)
  • PBY201209T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY2012xx - (PBY Series) Multilayer Ferrite Chip Beads (Yageo)
  • PBY26x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY27x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY28x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY30x - (PBYxxx) Diode (Iskra Semic Capacitors)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

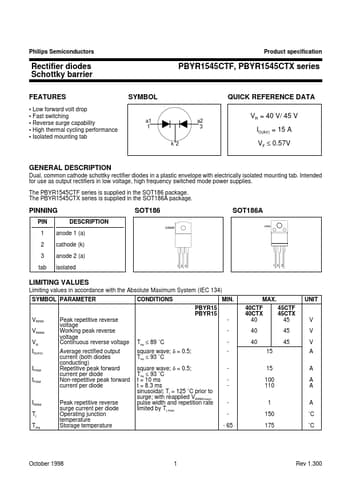

Philips Semiconductors Product specification Rectifier diodes Schottky barrier FEATURES • Low forward volt drop • Fast switching • Reverse surge capability • High thermal cycling performance • Isolated mounting tab PBYR1545CTF, PBYR1545CTX series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V IO(AV) = 15 A VF ≤ 0.57V a1 1 k 2 a2 3 GENERAL DESCRIPTION Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR1545CTF series is supplied in the SOT186 package. The PBYR1545CTX series is supplied in the SOT186A package.
