PBYR1540CTX Datasheet - NXP

PBYR1540CTX - Rectifier diodes Schottky barrier

Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab.

Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

The PBYR1545CTF series is supplied in the SOT186 package.

The PBYR1545CTX series is supplie

PBYR1540CTX Features

* Low forward volt drop

* Fast switching

* Reverse surge capability

* High thermal cycling performance

* Isolated mounting tab PBYR1545CTF, PBYR1545CTX series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V IO(AV) = 15 A VF ≤ 0.57V a1 1 k 2 a2 3 GENERAL DESC

PBYR1540CTX_PhilipsSemiconductors.pdf

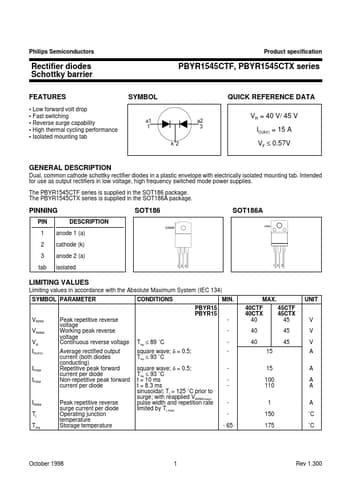

Preview of PBYR1540CTX PDF
