PBYR2040CT - Rectifier diodes Schottky barrier

Datasheet Summary

Description

Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package.

Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

Features

  • Low forward volt drop.
  • Fast switching.
  • Reverse surge capability.
  • High thermal cycling performance.
  • Low thermal resistance PBYR2045CT, PBYR2045CTB series SYMBOL QUICK.

📥 Download Datasheet

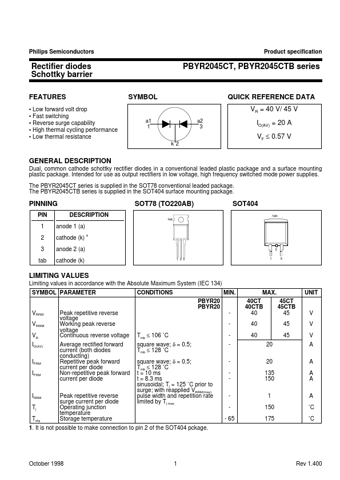

Datasheet preview – PBYR2040CT

Datasheet Details

Part number PBYR2040CT
Manufacturer NXP
File Size 42.37 KB
Description Rectifier diodes Schottky barrier
Datasheet download datasheet PBYR2040CT Datasheet
Additional preview pages of the PBYR2040CT datasheet.
