PBYR2040CTB - Rectifier diodes Schottky barrier

Datasheet Summary

Description

Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package.

Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

Features

  • Low forward volt drop.
  • Fast switching.
  • Reverse surge capability.
  • High thermal cycling performance.
  • Low thermal resistance PBYR2045CT, PBYR2045CTB series SYMBOL QUICK.

📥 Download Datasheet

Datasheet preview – PBYR2040CTB

Datasheet Details

Part number PBYR2040CTB
Manufacturer NXP
File Size 42.37 KB
Description Rectifier diodes Schottky barrier
Datasheet download datasheet PBYR2040CTB Datasheet
Additional preview pages of the PBYR2040CTB datasheet.

📁 Similar Datasheet

  • PBY060303T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY100505T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY160808T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY1608xx - (PBY Series) Multilayer Ferrite Chip Beads (Yageo)
  • PBY201209T - SMD Multilayer Ferrite Chip Beads (Chilisin Electronics)
  • PBY2012xx - (PBY Series) Multilayer Ferrite Chip Beads (Yageo)
  • PBY26x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY27x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY28x - (PBYxxx) Diode (Iskra Semic Capacitors)
  • PBY30x - (PBYxxx) Diode (Iskra Semic Capacitors)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

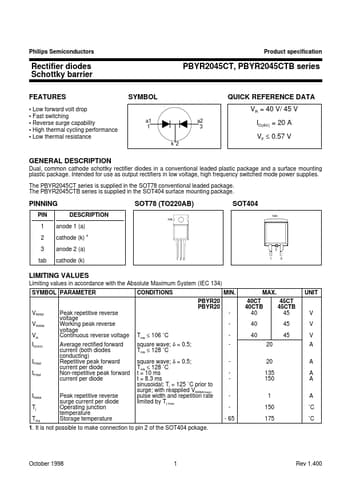

Philips Semiconductors Product specification Rectifier diodes Schottky barrier FEATURES • Low forward volt drop • Fast switching • Reverse surge capability • High thermal cycling performance • Low thermal resistance PBYR2045CT, PBYR2045CTB series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V a1 1 k 2 a2 3 IO(AV) = 20 A VF ≤ 0.57 V GENERAL DESCRIPTION Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR2045CT series is supplied in the SOT78 conventional leaded package. The PBYR2045CTB series is supplied in the SOT404 surface mounting package.
