PDTC323TK NPN 500 mA / 15 V resistor-equipped transistor

PDTC323TK Description

PDTC323TK NPN 500 mA, 15 V resistor-equipped transistor; R1 = 2.2 kΩ, R2 = open Rev.01 * 3 June 2005 Product data sheet 1.Product profile 1..
500 mA NPN Resistor-Equipped Transistor (RET) in a small SOT346 (SC-59A) SMD plastic package.

PDTC323TK Applications

* s Digital application in automotive and industrial segments s Controlling IC inputs s Cost saving alternative for BC817 series in digital applications s Switching loads 1.4 Quick reference data Table 1: Symbol VCEO IO R1 Quick reference data Parameter collector-emitter voltage output current bias r

📥 Download Datasheet

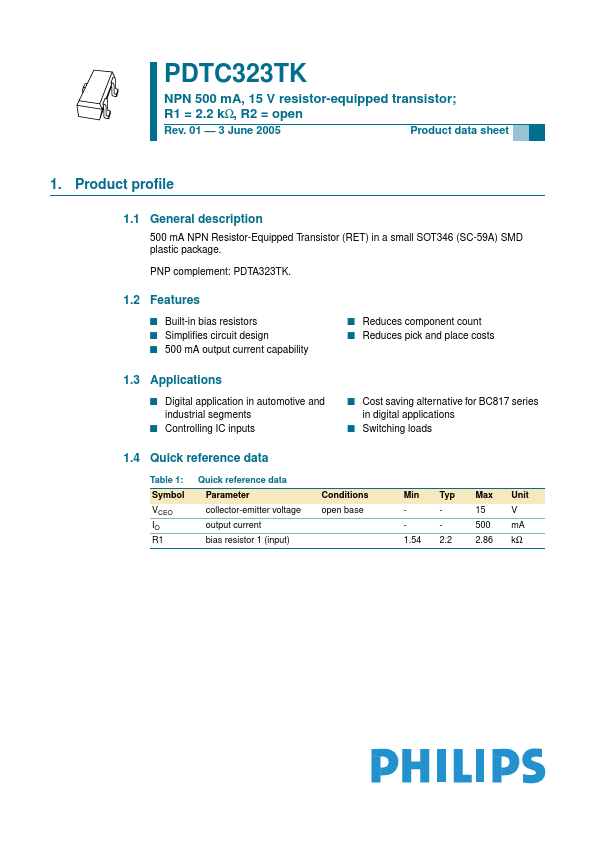

Preview of PDTC323TK PDF

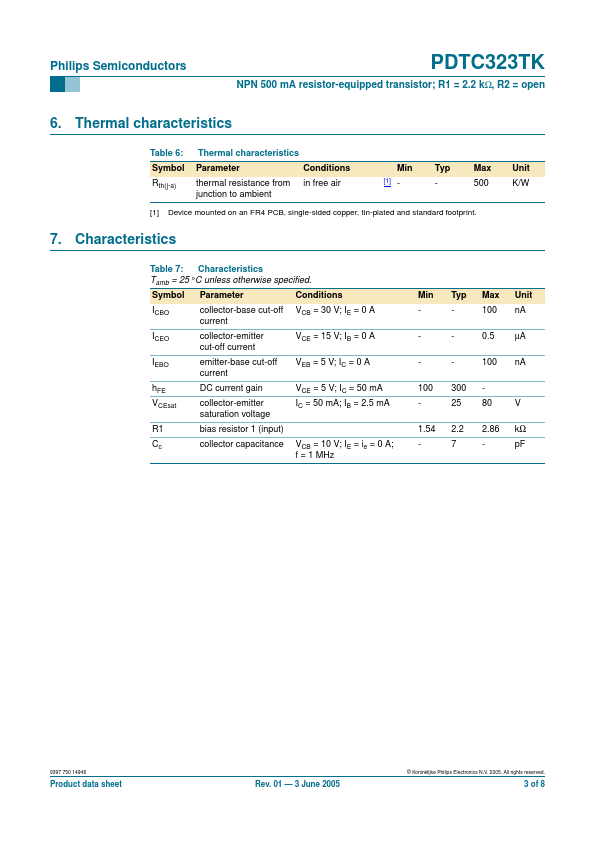

datasheet Preview Page 2 datasheet Preview Page 3
