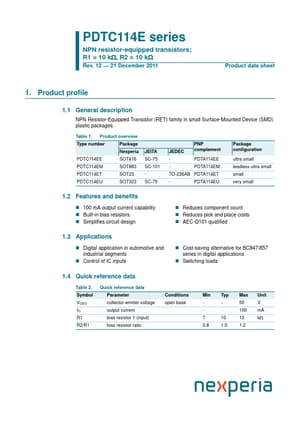

PDTC114EE, PDTC114E, NPN resistor-equipped transistors

NPN Resistor-Equipped Transistor (RET) family in small Surface-Mounted Device (SMD) plastic packages.

Table 1.

Product overview Type number Package Nexperia PDTC114EE SOT416 PDTC114EM SOT883 PDTC114ET SOT23 PDTC114EU SOT323 JEITA SC-75 SC-101 SC-70 JEDEC PNP complement - PDTA114EE -

PDTC114EE Features

* 100 mA output current capability

* Built-in bias resistors

* Simplifies circuit design

* Reduces component count

* Reduces pick and place costs

* AEC-Q101 qualified 1.3 Applications

* Digital application in automotive and industrial segments

* Control of IC inputs
