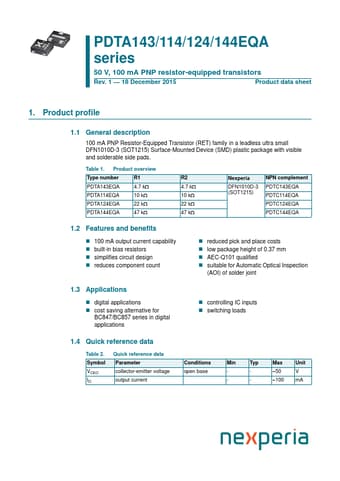

PDTC114EQA, PDTA143EQA, NPN resistor-equipped transistor
100 mA PNP Resistor-Equipped Transistor (RET) family in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Table 1.
Product overview Type number R1 PDTA143EQA 4.7 k PDTA114EQA 10 k PDTA124EQA 22 k PDTA144EQA 4
PDTC114EQA Features
* 100 mA output current capability
* built-in bias resistors
* simplifies circuit design
* reduces component count
* reduced pick and place costs
* low package height of 0.37 mm
* AEC-Q101 qualified
* suitable for Automatic Optical Inspection (AOI) of solder joint 1
