PESD5V0L1BA - Low capacitance bidirectional ESD protection diodes

NXP

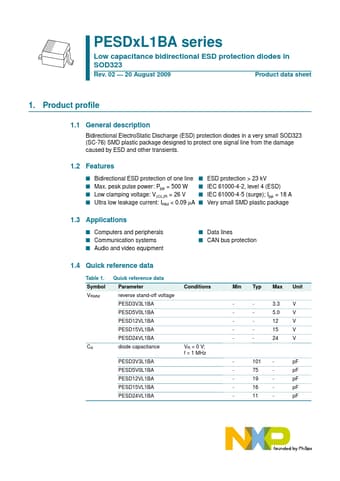

PESD5V0L1BA Datasheet Preview — Preview of PESD5V0L1BA PDF

Datasheet Details

Part number	PESD5V0L1BA
Manufacturer	NXP ↗
File Size	173.50 KB
Description	Low capacitance bidirectional ESD protection diodes
Datasheet	PESD5V0L1BA_PhilipsSemiconductors.pdf

PESD5V0L1BA Product details

Description

Bidirectional ElectroStatic Discharge (ESD) protection diodes in a very small SOD323 (SC-76) SMD plastic package designed to protect one signal line from the damage caused by ESD and other transients.

Features

I Bidirectional ESD protection of one line I ESD protection > 23 kV I Max. peak pulse power: Ppp = 500 W I IEC 61000-4-2, level 4 (ESD) I Low clamping voltage: V(CL)R = 26 V I IEC 61000-4-5 (surge); Ipp = 18 A I Ultra low leakage current: IRM < 0.09 µA I Very small SMD plastic package 1.3.
